Aluminium Self Assembly Kit to build light and strong plaform
do szybkiego i samodzielnego wykonania lekkiej i mocnej zabudowy typu:
ROADSIDE ASSISTANCE or VEHICLE TRANSPORTATION
NO WELDING NEEDED
DIMESSIONS 5000 X 2110 mm

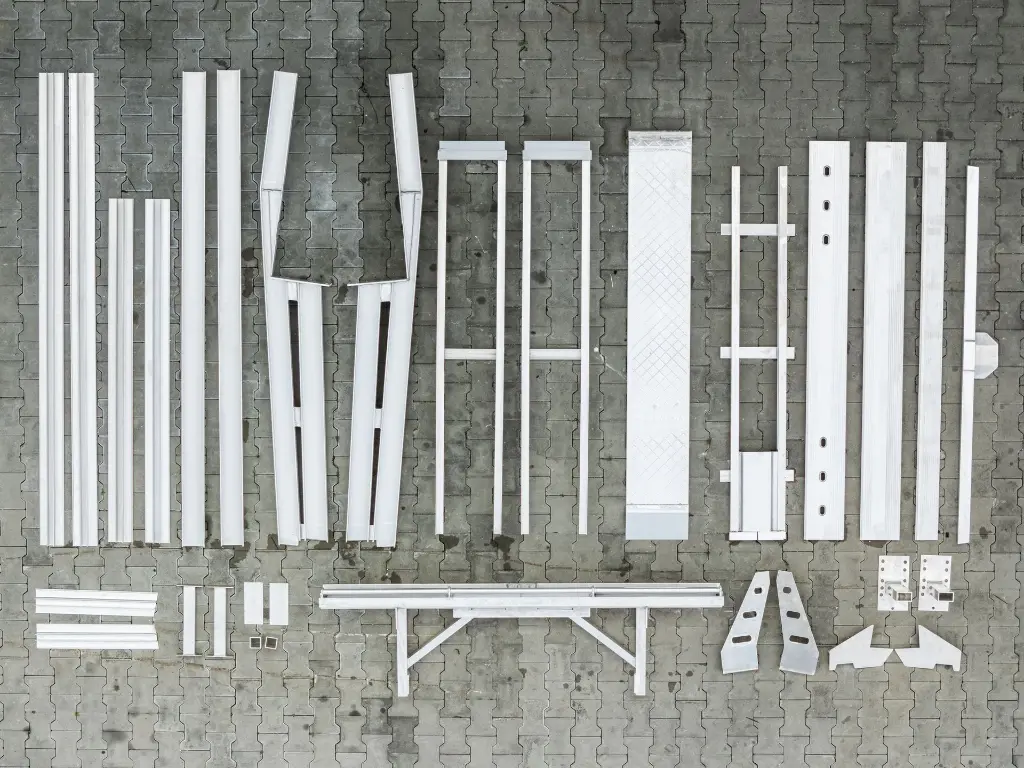

The set includes:
All aluminum elements:

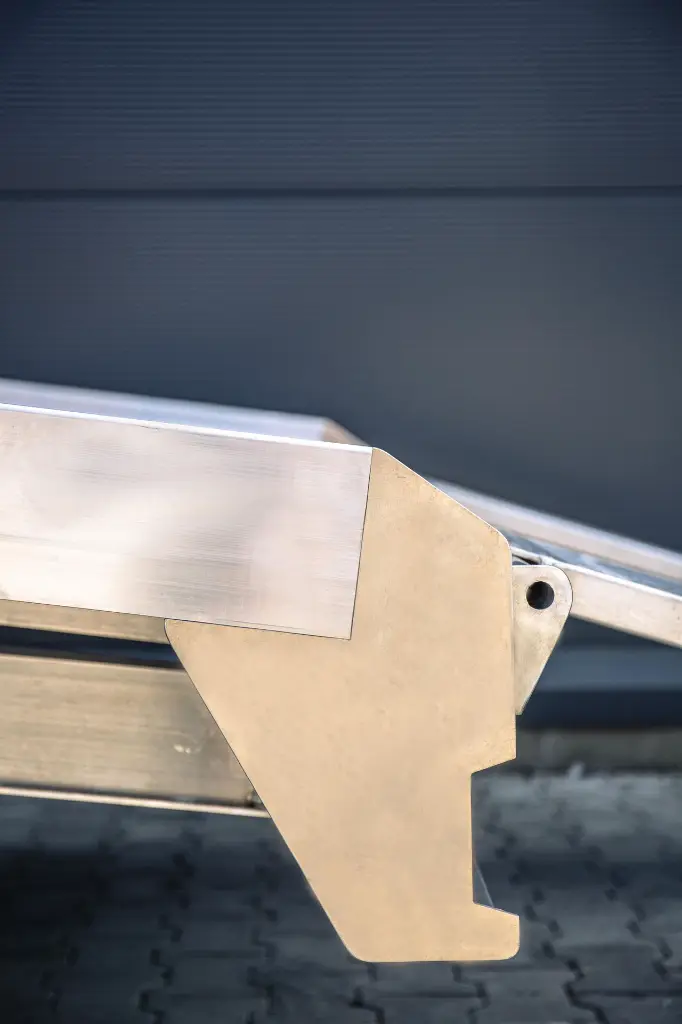

- Welded chassis profiles with an adapted approach angle for a dedicated vehicle
- Welded overhang extension with a bumper and towbar mount with a cut-out for entry gangway guides

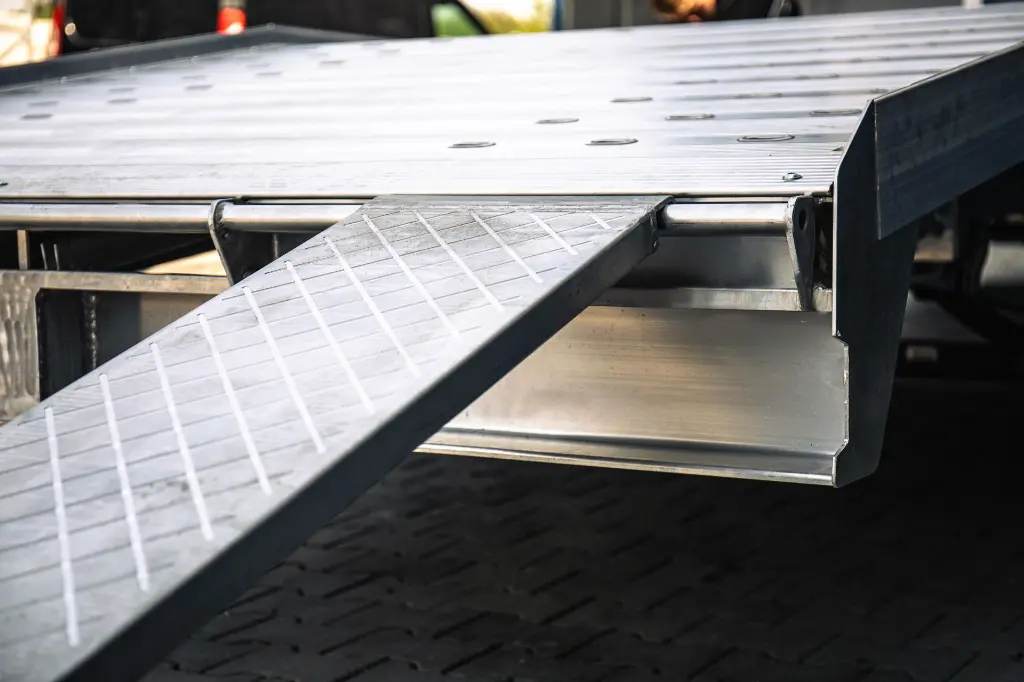

- Welded guides for entrance gangways
- A welded set of entrance gangways finished with a C-section with dimensions of 2160x330x40mm
- Low fairing behind the cabin

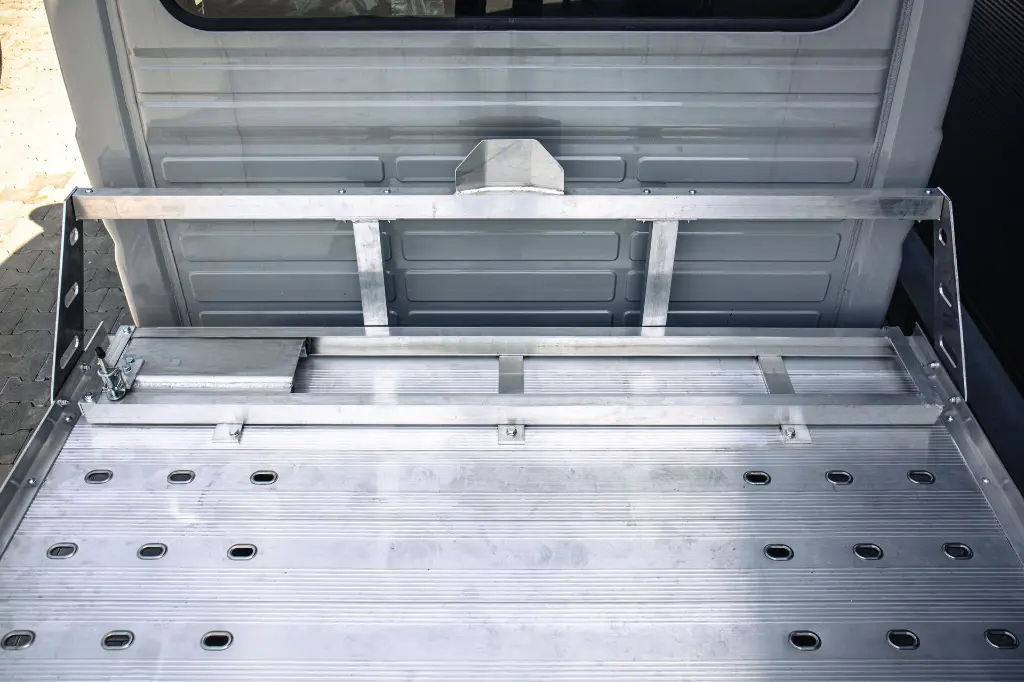

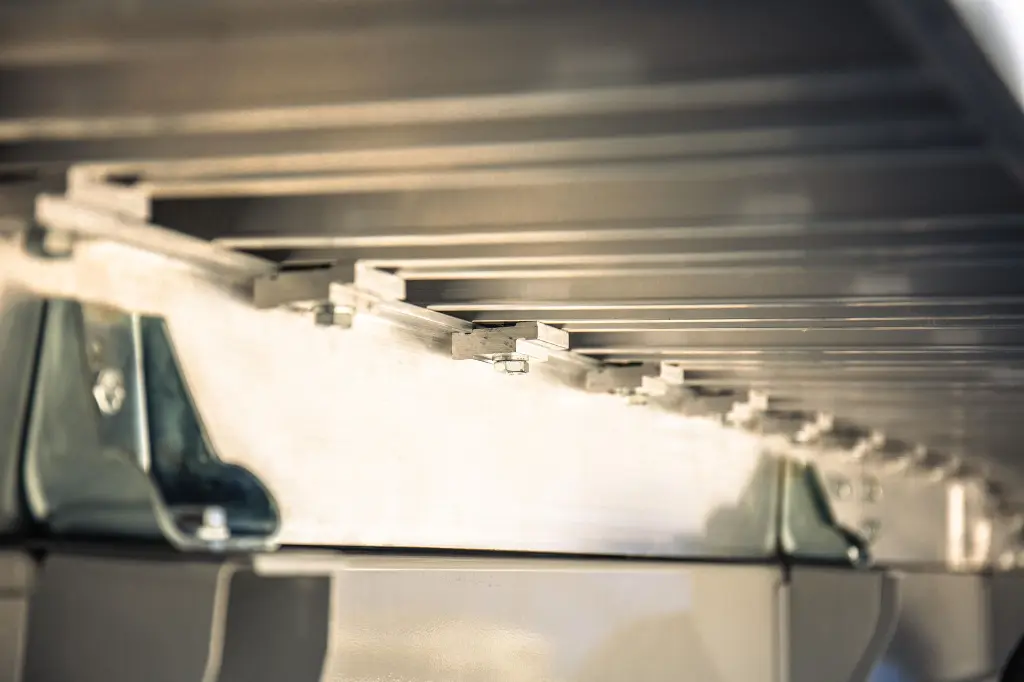

- 23 perforated floor panels, forged with a stainless steel insert, plus two pieces without holes for the winch frame (available for purchase)
- POLMAR130 side profile
A set of screws and fasteners with instructions.
Zabudowa zgodna z ISO 9001:2015,PN-EN 12640:2020 oraz VDI 2700-8.1:2024 - możliwość uzyskania certyfikatu po montażu i zakupie wymaganych akcesoriów (więcej w zakładce VDI 2700 8.1 i 8.2 w menu)
Kit size on the pallete: 250x80x80cm - 320kg

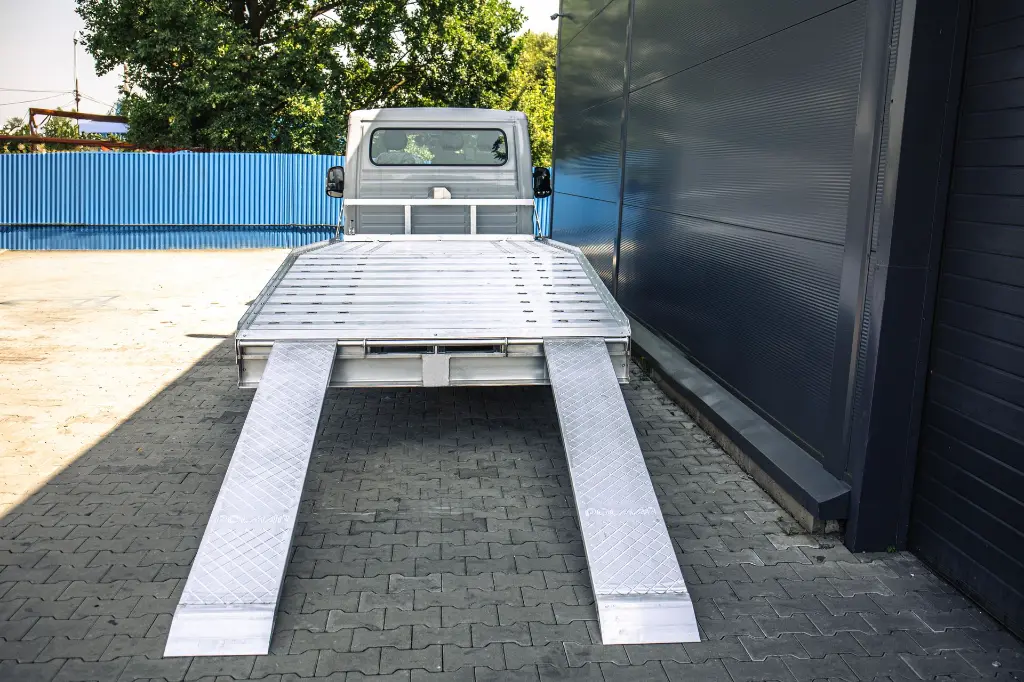

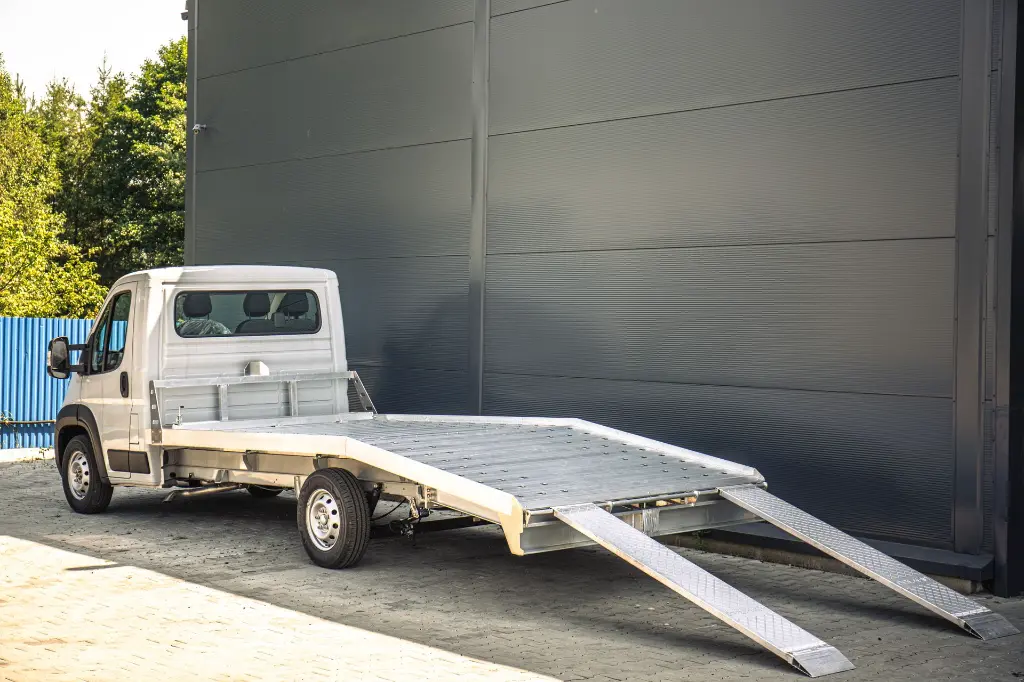

Photos shows assembled kit.
